Axiom Supply SPECIAL FLANGE (8x6.5) Wheel Bearing Assembly 2005+ Dana 60 Front w/ GM Lug Pattern

Finally! A bearing that is a true direct bolt-on with an 8x6.5 (8x165.1) GM truck lug pattern!

Not drilled! Not machined!

This is a genuine GM-style hub flange affixed to a Ford Dana 60 unit bearing housing.

Perfect for:

• Straight axle swaps
• GM truck axle conversions
• Jeep and Toyota 1-ton axle builds
• Custom fabrication projects and more

Fitment

This wheel bearing assembly is designed to fit:
2005+ Ford Dana 60 Front axle housings

Features

Precision Tapered Roller Bearings – Engineered with high-performance grease for smooth, maintenance-free operation.

Premium Hardware – Grade 10.9 cold-formed, zinc-plated studs for superior tensile strength and corrosion resistance.

Durable ABS Sensor – Maintains accurate signal transmission in extreme heat, mud, and moisture.

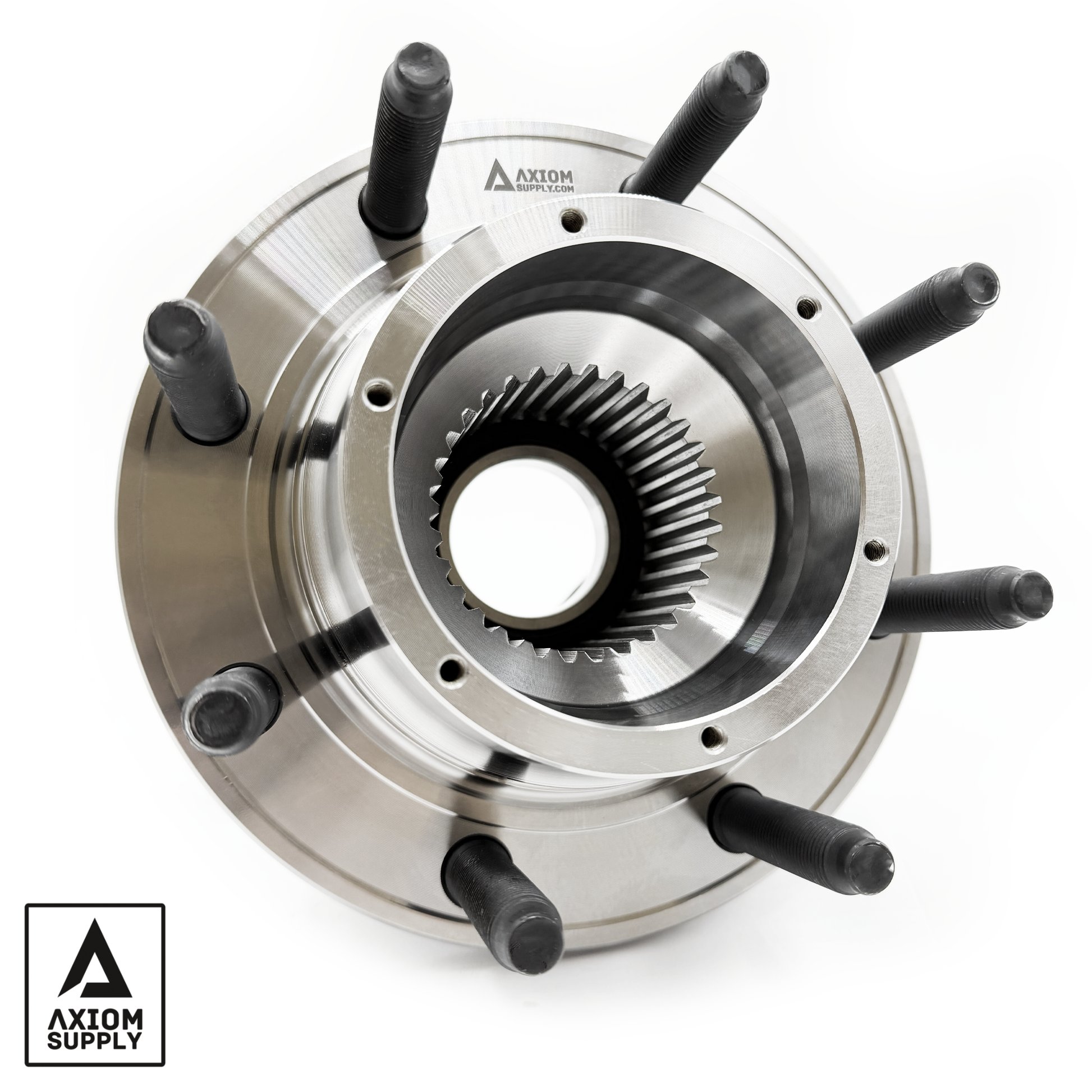

True GM Lug Configuration – 8x6.5" (8x165.1) pattern with M14-1.5 fine thread studs. No modification required.

Description

The Axiom Supply Bearing Assembly is built for professionals and builders who demand strength, precision, and true bolt-on compatibility.

Unlike modified or redrilled hubs, this assembly features a purpose-built hybrid design combining a GM hub flange with a Ford Dana 60 unit bearing housing. The result is a stronger, cleaner, and more reliable solution for heavy-duty conversions.

Our proprietary bearing and hub structure reduces hub-face deflection under load, delivering:

• Tighter steering response
• Improved braking stability
• Increased durability under towing, oversized tires, and lifted suspension setups

Each unit comes fully assembled and installs as a direct bolt-in on left or right spindles. Typical installation time is around 2 hours, with no special modifications required.

Whether you're building a hardcore off-road rig or upgrading a work truck, Axiom Supply delivers the performance serious builders expect.

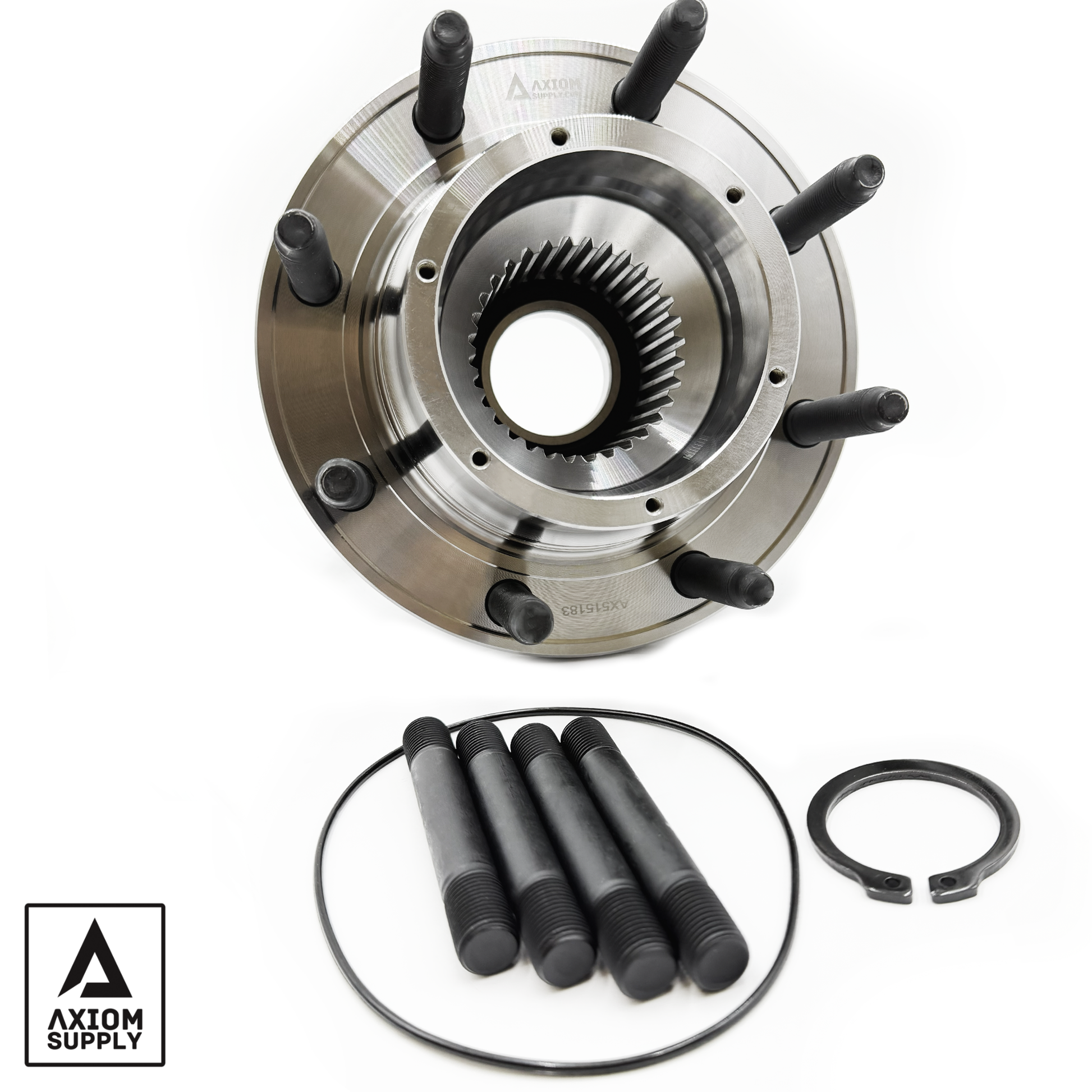

Includes

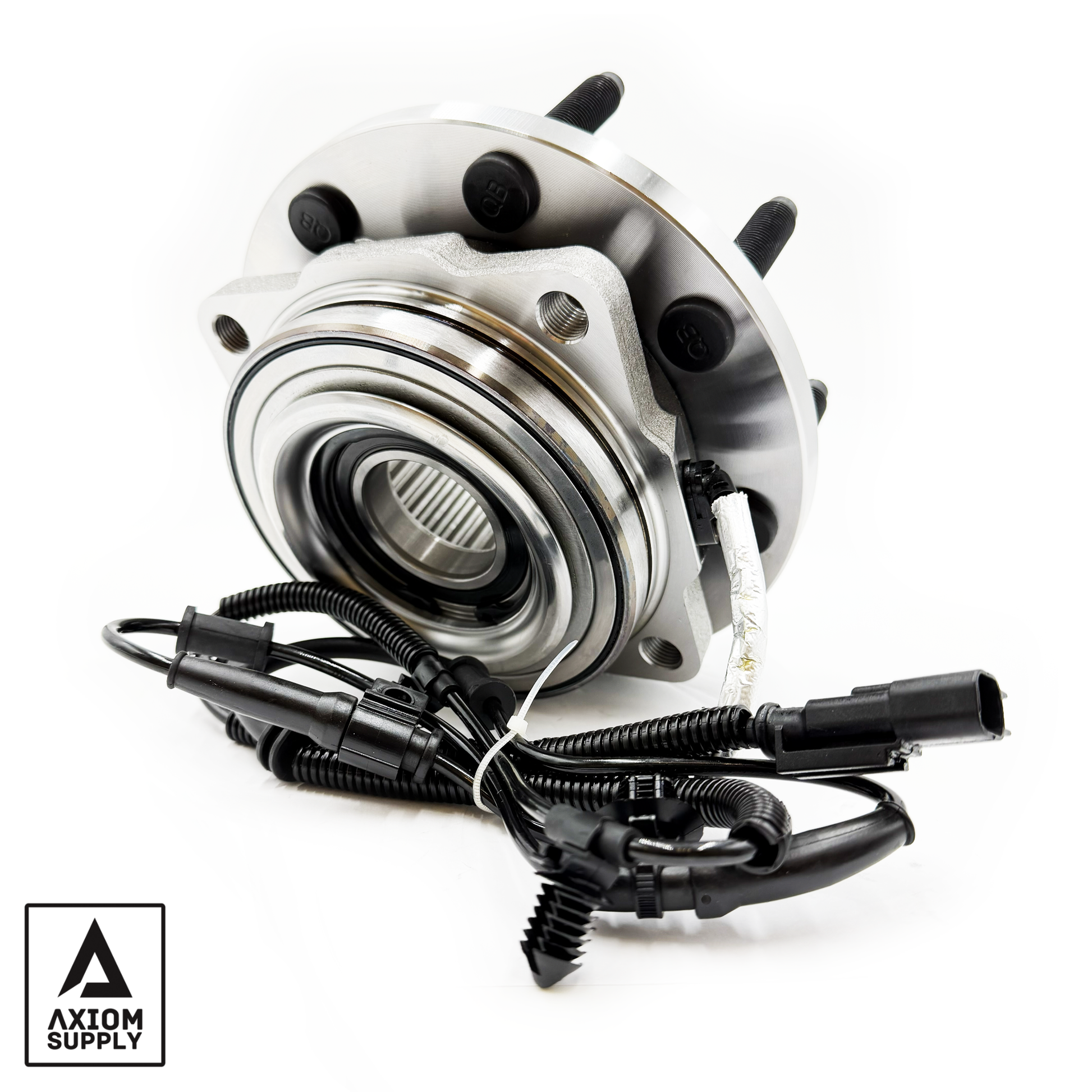

• (1) Wheel Bearing & Hub Assembly (with integrated ABS wire)
• (4) Mounting Bolts
• (1) O-ring
• (1) Retainer Ring

Torque Specifications

• Hub Nut Procedure:
  While rotating the wheel, tighten to 30 ft-lbs (40 Nm).
  Loosen two full turns.
  Retighten to 17–24 ft-lbs (22–34 Nm) while rotating.
  Back off 175 degrees, then final torque to 17 ft-lbs (2 Nm).
• Spindle Bolts (4): 133 lb-ft
• Caliper Bolts (2): 166 lb-ft

The Axiom No-Nonsense Lifetime Warranty

Our suspension and steering components are warrantied for life to the original purchaser against any manufacturer defects, premature wear, or breakage.

Push it to the limit—we don’t care.
If the part lets you down, we will make it up to you!
